Home energy storage has gained significant traction in the global market in recent years. The demand for energy storage solutions has soared, making home energy storage products an essential part of electricity consumption in households worldwide. On the one hand, people's demand for electricity stability is getting higher and higher, and on the other hand, there are more and more uncertainties due to external factors. For example, some countries are affected by extreme weather + weak grid coordination, resulting in poor stability of power supply to residents; under the energy crisis, the cost of electricity consumption overseas is rising and other factors. According to statistics, the global new household storage installed capacity in 2021 will be 1.91GW/4.36GWh. Currently, household energy storage is mainly concentrated in countries or regions with high electricity prices, Germany, Italy, the United Kingdom and other European countries, as well as Japan, Australia, the United States and other countries.

Home energy storage is the storage of electricity to be used when needed. The core of the home energy storage system is photovoltaic + battery + storage inverter. Topband Battery home energy storage system utilizes the solar power generation system on the roof and low-cost electricity from the grid power system to store the remaining electricity into the peak storage system, which not only saves electricity for emergency use, but also saves the family's electricity bill. Even in the event of bad weather, continuous or accidental power outages, it can also protect the family's power supply throughout the day in different scenarios.

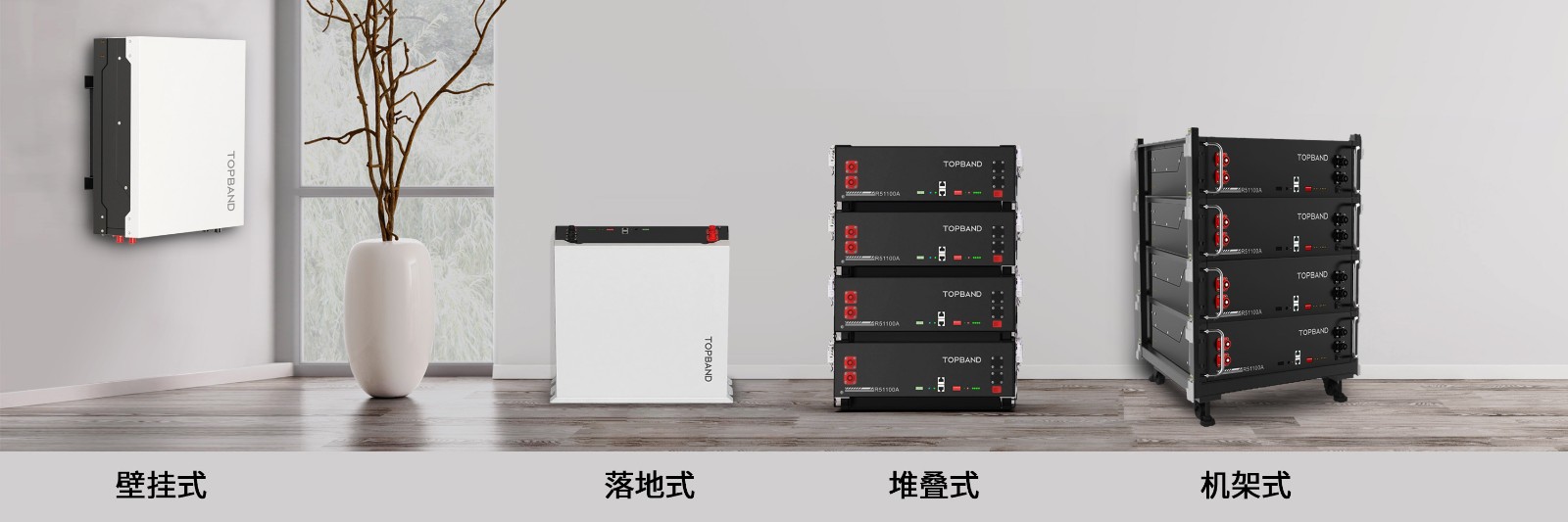

Topband Battery's home energy storage series include wall-mounted, cabinet, rack-mounted, stacked products, the diversity of appearance design to meet the installation needs of different scenes, and can be adapted to most mainstream inverters.

How to choose a stable and reliable home energy storage product for your family? As the optimal choice for millions of families - this Home Storage RS-R51100A battery is specially designed for residential applications and can provide a stable power experience for families. According to the customer's needs and installation environment, we can solve the customer's installation needs in the residential environment by fixing a chassis, choosing different installation accessories, and freely switching to achieve different installation effects.

Topband Battery this RS-R51100A battery with flexible and versatile installation: support wall, floor, rack, stacking four installation methods, the use of self-developed lithium iron phosphate cells, and with the self-developed BMS, to ensure the best quality and safety, can achieve more than 6,000 times the cycle life; a single 51.2V100Ah, the rated capacity of 5.12kWh, can support 32PCS parallel expansion to 163.84kWh, can cope with the large power demand environment. Single 51.2V100Ah, rated capacity up to 5.12kWh, can support 32PCS parallel expansion to 163.84kWh, able to cope with large power demand environment.

The following is a brief introduction to the four installation methods of this RS-R51100A

I. Wall-mounted

1. Remove the lugs on both sides of the battery and separate the wall mount bracket from the small parts. 2.Remove the wall mount bracket, place it horizontally on the wall and mark the holes on the panel. 3. Drill holes for M10 expansion bolts in the wall. Drill the holes to a depth of at least 60mm and insert the bolts. 4. Fix the bracket with nuts. 5.Fix the wall mounted widget and decorative panel to the battery with combination screws. 6. Lift up the battery, put the hook into the hole of the bracket, fix the widgets to the bracket with the combination screws and tighten them with a screwdriver. 7.Finish the cable connection.

II. Floor-mounted 1. Remove the lugs from both sides of the battery. 2. Place the base near the wall and align it with the wall, make sure the distance is between 10mm ~ 35mm. 3. Drill holes for M6 expansion bolts on the floor. Drill the holes no less than 50mm deep and insert the bolts. (This step is optional) 4. Fix the base with nuts. (This step is optional) 5. Remove the lugs from the battery and drill holes for M6 expansion bolts in the wall. Drill the hole to a depth of not less than 50mm and insert the bolt. 6. Secure the lugs with the battery and tighten the bolt with the nut.

III. Rack-mounted 1. Prepare the rack or cabinet and place it horizontally in a reasonable position. 2. Manually place the battery on the rack or cabinet tray and insert the screws to secure the battery to the rack or cabinet. 3. Complete the cable connection

IV. Stack-mounted 1. Remove the lugs from both sides of the battery. 2. Attach the stacking assembly to the four corners of the battery.

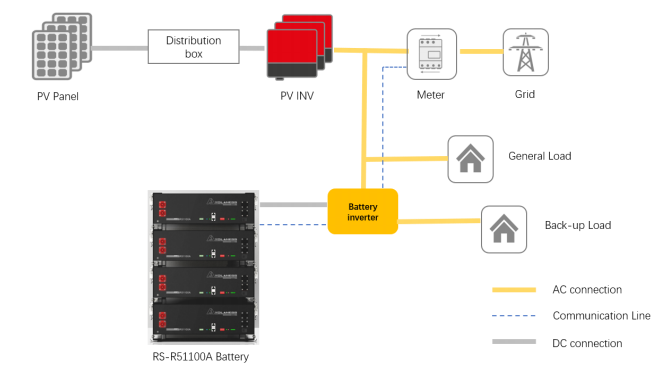

The following is a general schematic diagram of an AC system with batteries:

(The electrical connections shown are for illustrative purposes only and should be made in accordance with the recommendations of the manual for the relevant equipment and in accordance with applicable local connection requirements, standards and instructions.)

For the needs of different electrical scenarios in the home (considerations: space saving as well as aesthetic, safety and other considerations), the average home will choose to install in a shaded area such as an attached, detached garage, on an outside wall, at least 3 feet (914 mm) from a door or window. Outdoors, at least 3 feet (914 mm) from a door or window, spaces such as utility closets, storage or utilities. Topband Battery has designed four portable mounting options that can make a difference in your home's electricity experience. The wall-mounted type has a superb cost-effective advantage and is suitable for home customers with low budgets and less space to use. In terms of inverter, it can adapt to most mainstream inverters, such as Sol-Ark, DEYE, Victron, SMA, Voltronic, Schneider, Megarevo, Growatt and other brands. It is certified by IEC62619, UL1973, and UN38.3.

According to BloombergNEF (BNEF), the global energy storage capacity is projected to reach 411 GW (or 1,194 GWh) by the end of 2030, marking a significant increase from the 27GW/56GWh available in 2021. Home energy storage is one of the fastest-growing industries worldwide, and Topband Battery's products offer exceptional cost-effectiveness. The home energy storage system enhances the stability and reliability of solar power generation, helping users save on electricity costs and ensure stable electricity consumption.

Topband Battery is committed to providing safe, stable, and user-friendly energy storage solutions worldwide. The RS-R51100A battery offers high-quality performance and flexibility, ensuring an excellent experience for your specific application environment.
