LFP Prismatic cell

Topband Battery is providing high energy density lithium iron phosphate batteries for users, through independent R&D and production of cathode material and cells. Prismatic lithium ion

,,,

Consult Immediately Specifications

LFP Prismatic cell

Product Design Concept

Topband Battery is providing high energy density lithium iron phosphate batteries for users, through independent R&D and production of cathode material and cells. Prismatic lithium ion cell is one of the most mature and stable products of TOPBAND, we can customize according to customers' needs.

Excellent product performance: LiFePO4 Prismatic cell is the longest-established cell developed by Topband Lithium, with the characteristics of high and low temperature, long cycle life, high safety and good reliability. The products have been widely used in home energy storage, communication base stations, smart grid, UPS power supply and equipment support, etc

: High Power

: High Energy Density
Energy density up to 165-170Wh/kg

: Long Life

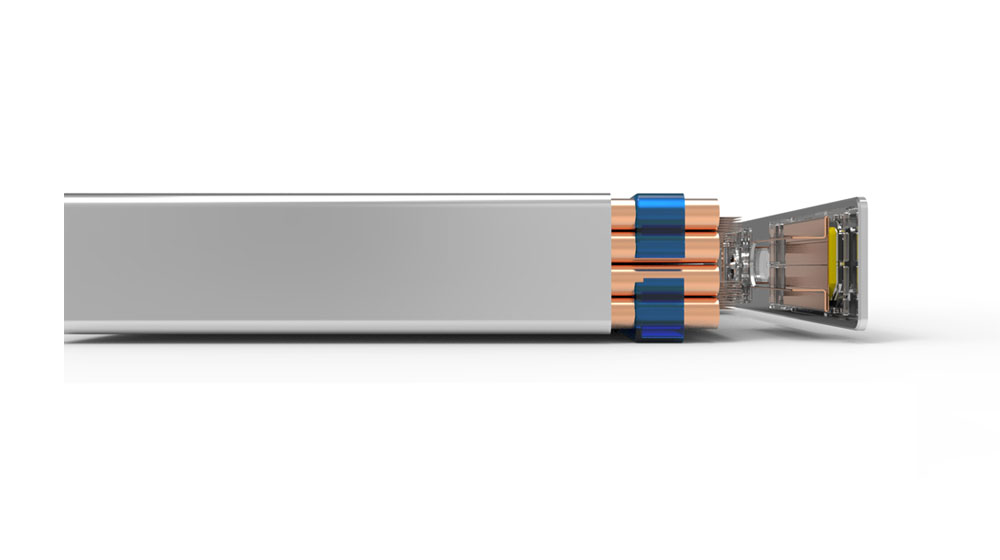

Fully welded design, with cycle life >4000 cycles

: High Safety
Dual protection, battery cell through the system safety certification

: Wide temperature range application technology
High temperature 60℃, low temperature -20℃, 1C discharge capacity>70%

Applications

The products have been widely used in home energy storage, communication base stations, smart grid, UPS power supply and equipment support, etc

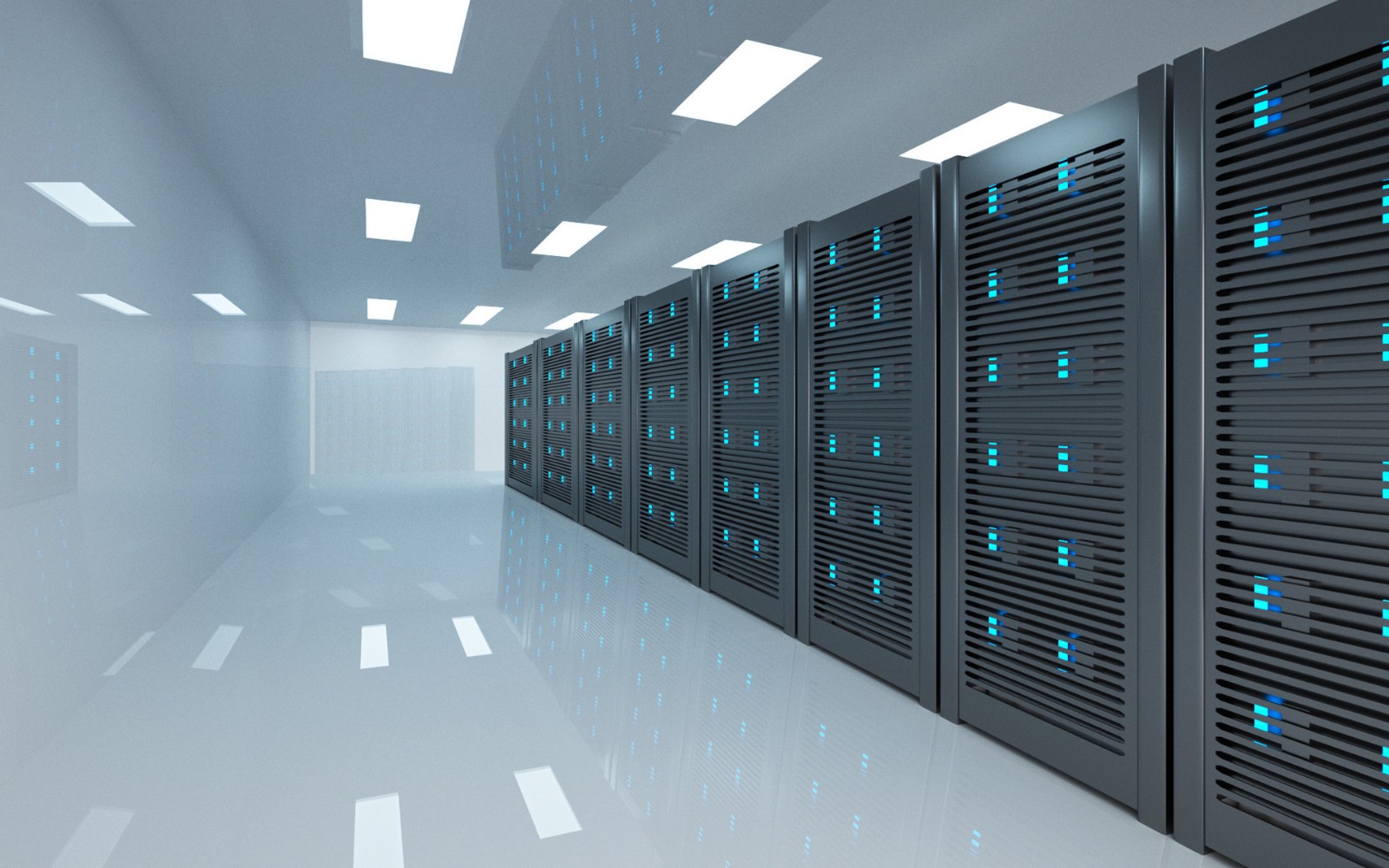

: UPS Power Supply

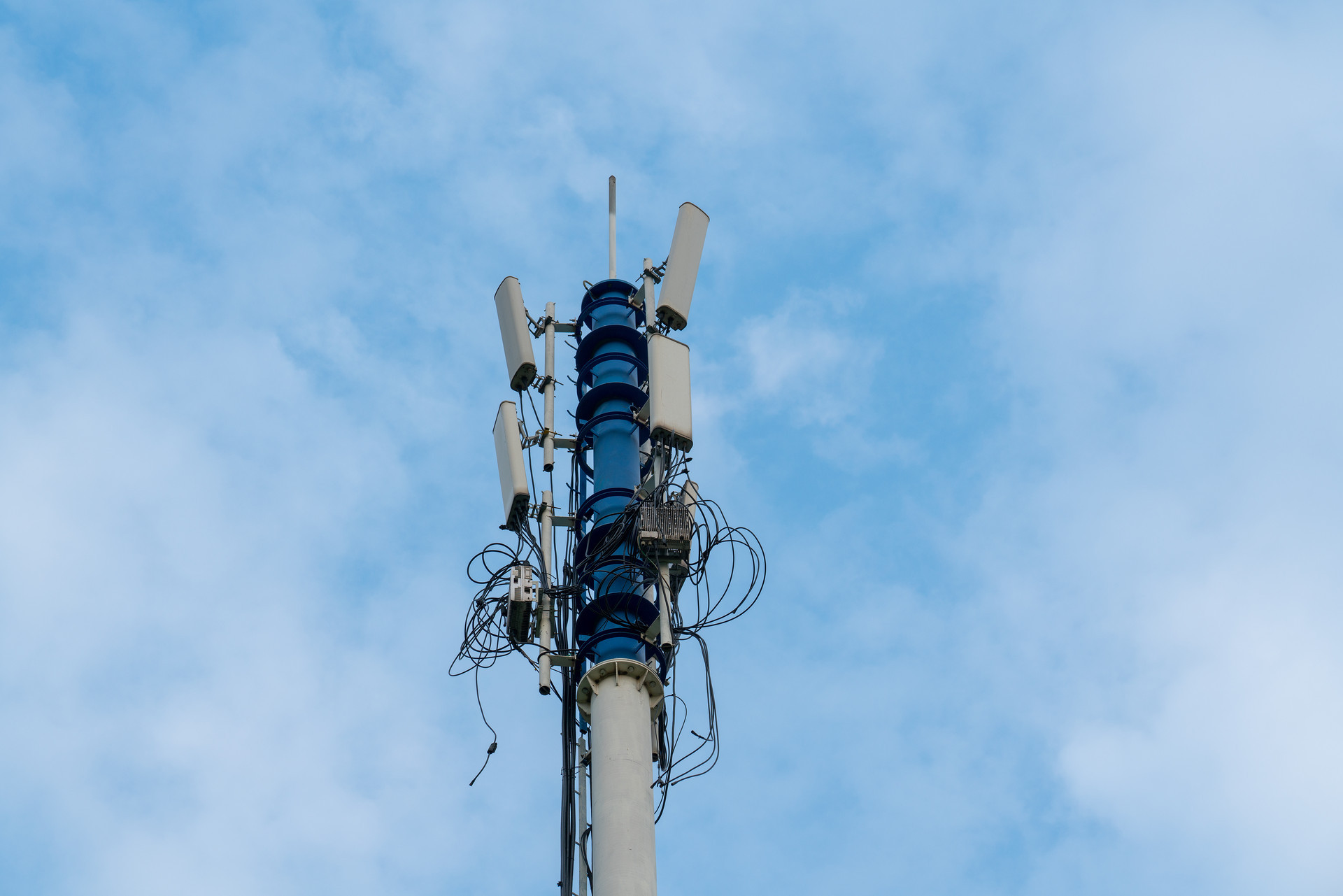

: Communication Base Station

: Energy Storage System

TECH & SPECS

Item/Model
TB-20Ah-LFP
TB-30Ah-LFP
TB-100Ah-LFP

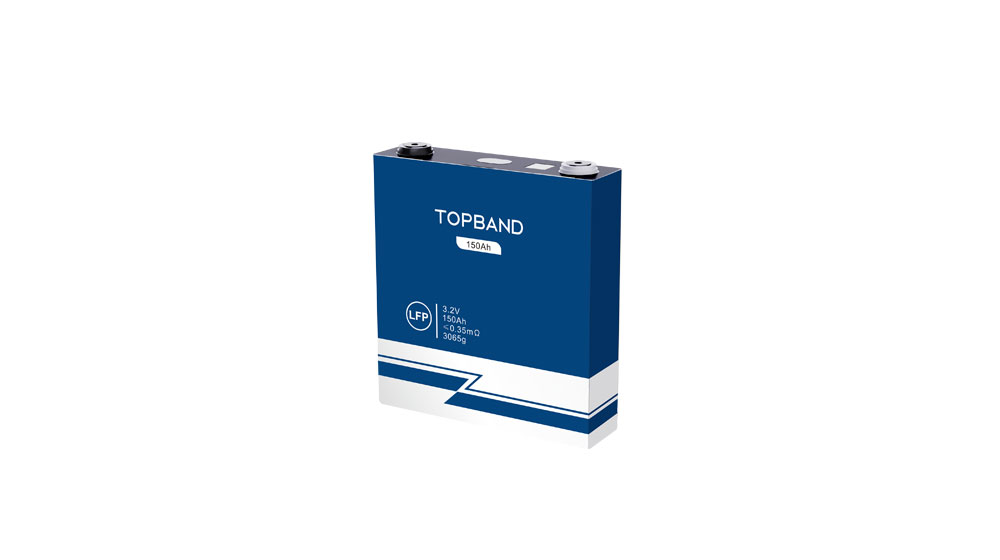

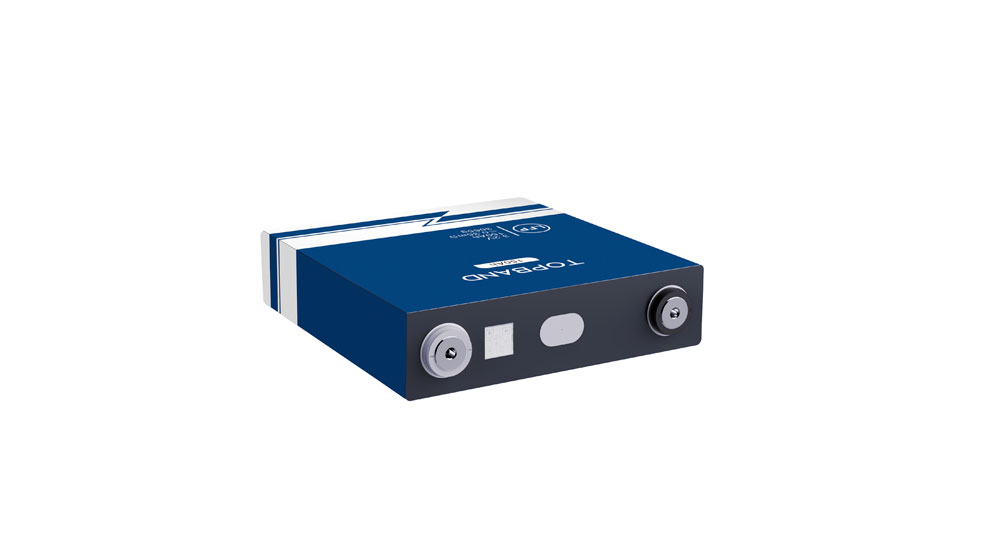

TB-150Ah-LFP

Nominal voltage
3.2V
3.2V
3.2V
3.2V

Nominal Capacity
20Ah
30Ah
100Ah
150Ah

Standard charging current
10A
15A
100A
75A

Standard discharge current
20A
15A
100A
150A

Max. continuous discharge current
60A
90A
150A
225A

Internal resistance
4.0mΩ
3.0mΩ
0.6mΩ
0.35mΩ

Weight
520±20g
680±20g
2200±50g
3065±50g

Cycle Life
≥6000次
≥6000次
≥6000次
≥6000次

Dimension(L*W*H)
27*70*145mm
27*70*180mm
32*173*195mm
45*173*184mm
