Home > Product > RESS LFP battery > RS-RH series

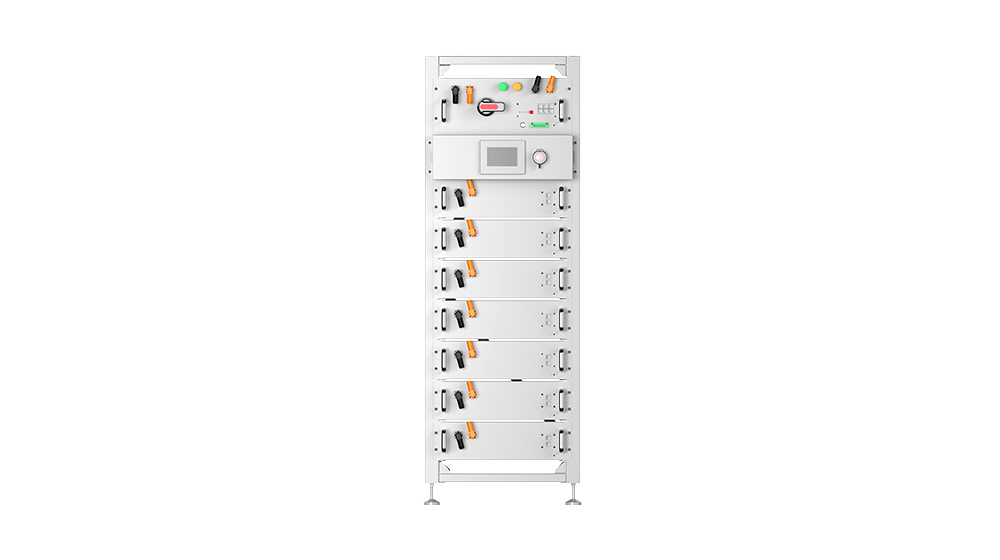

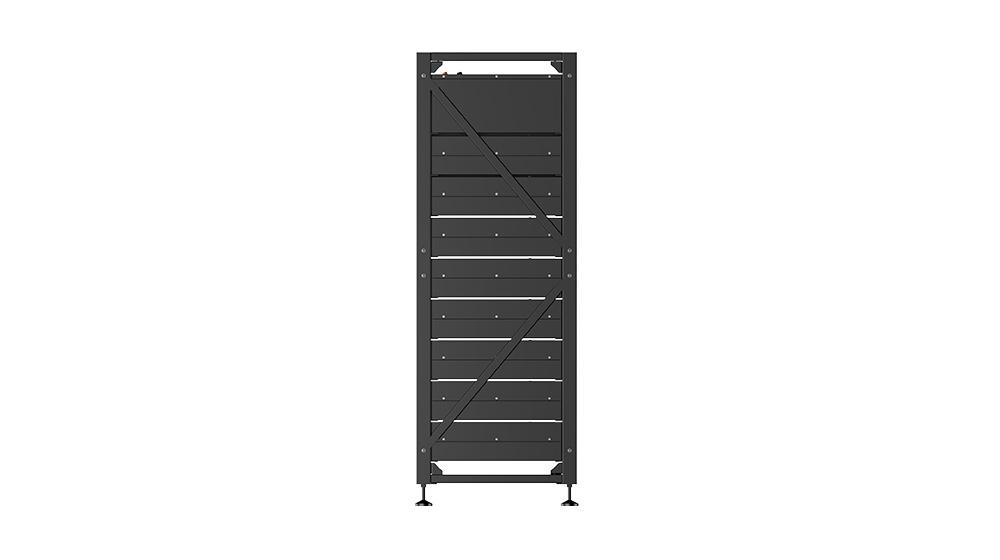

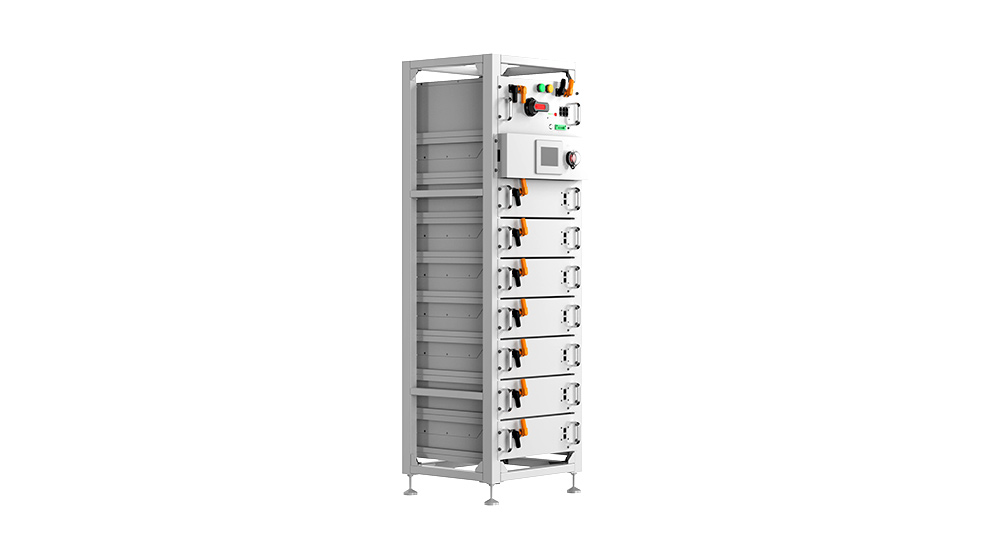

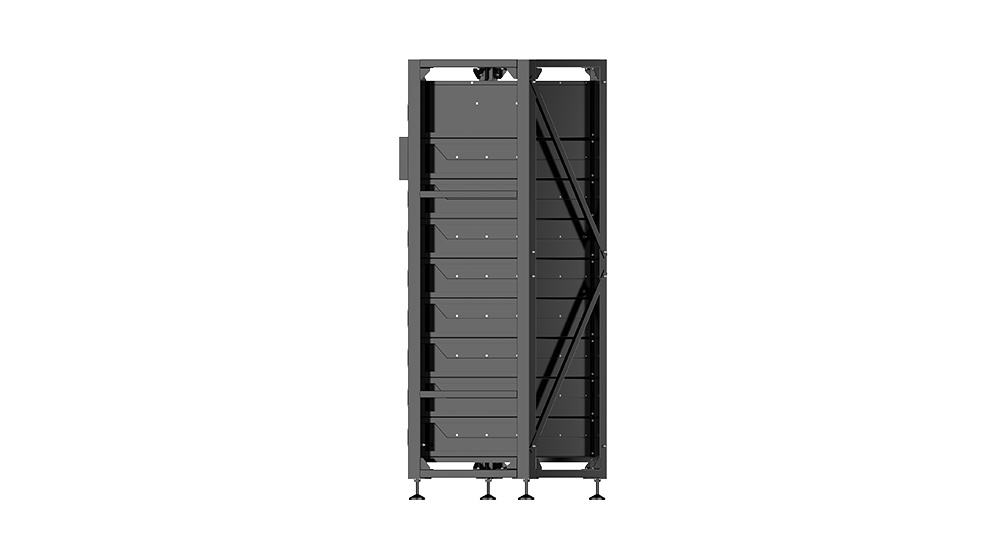

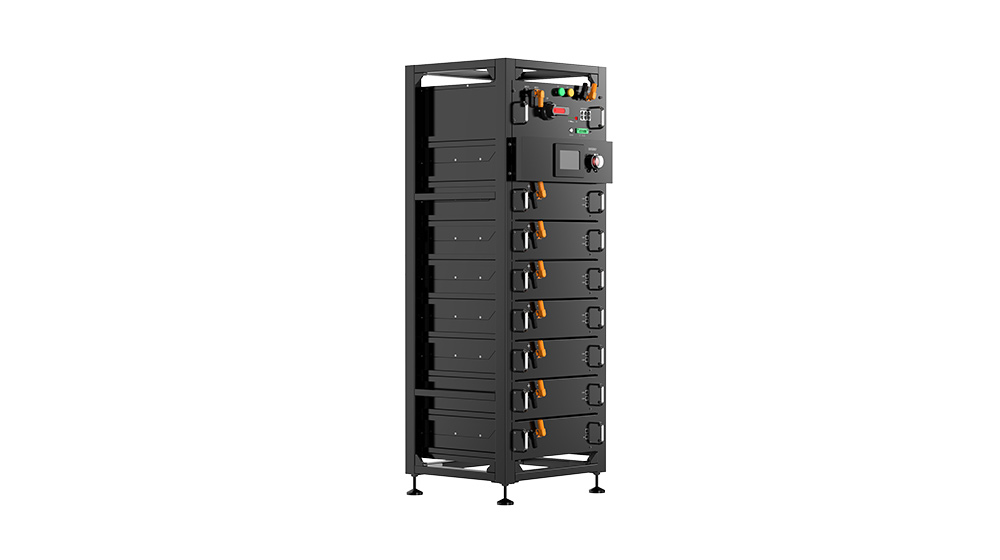

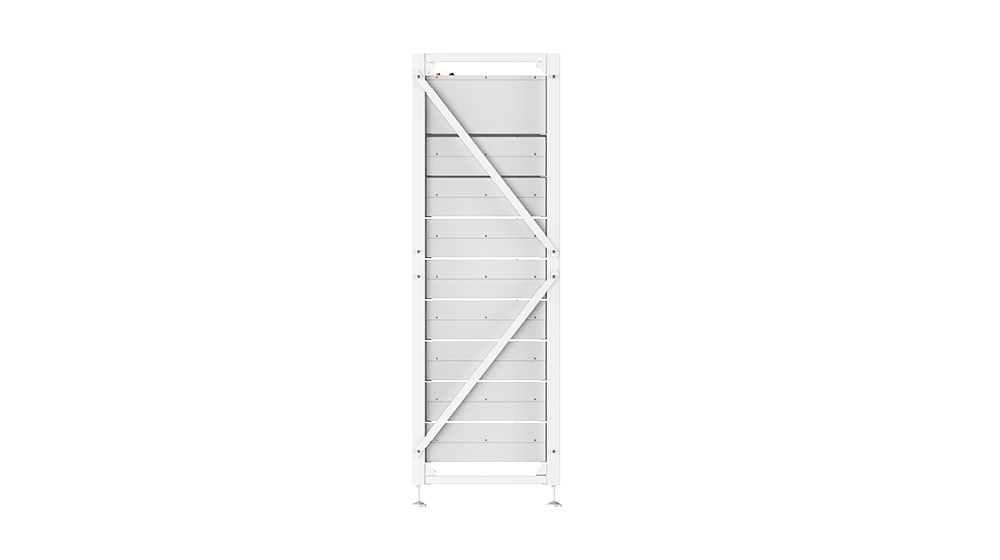

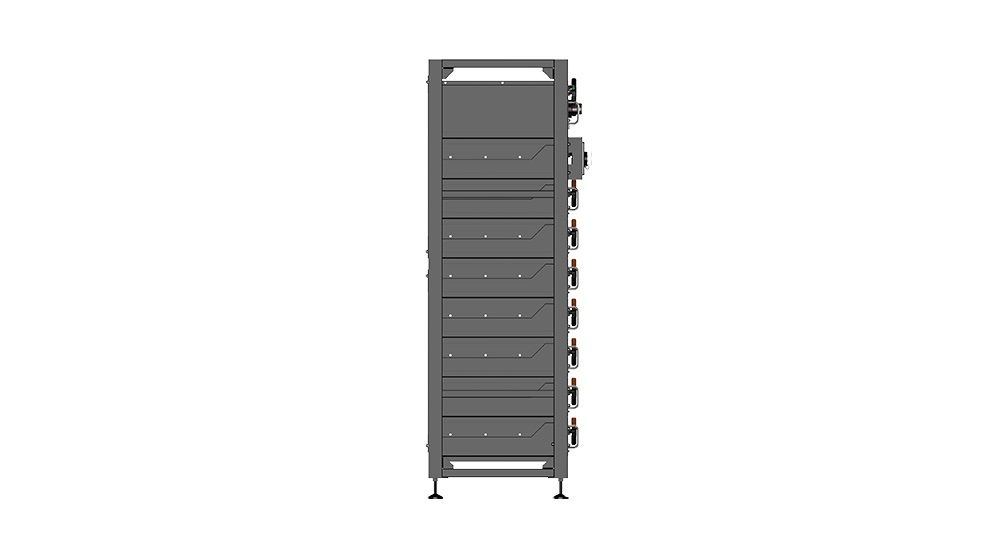

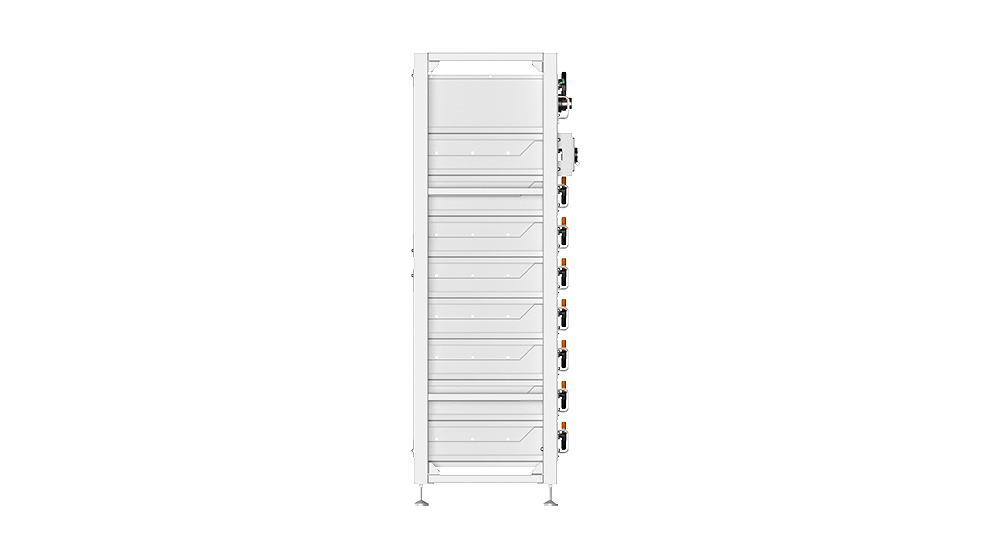

RS-RH series

The high-voltage rack is a residential energy storage system composed of high-voltage packs, which can store the electrical energy converted from renewable energy sources such as solar energy and wind energy.

Consult Immediately Specifications

RS-RH series battery

Green energy

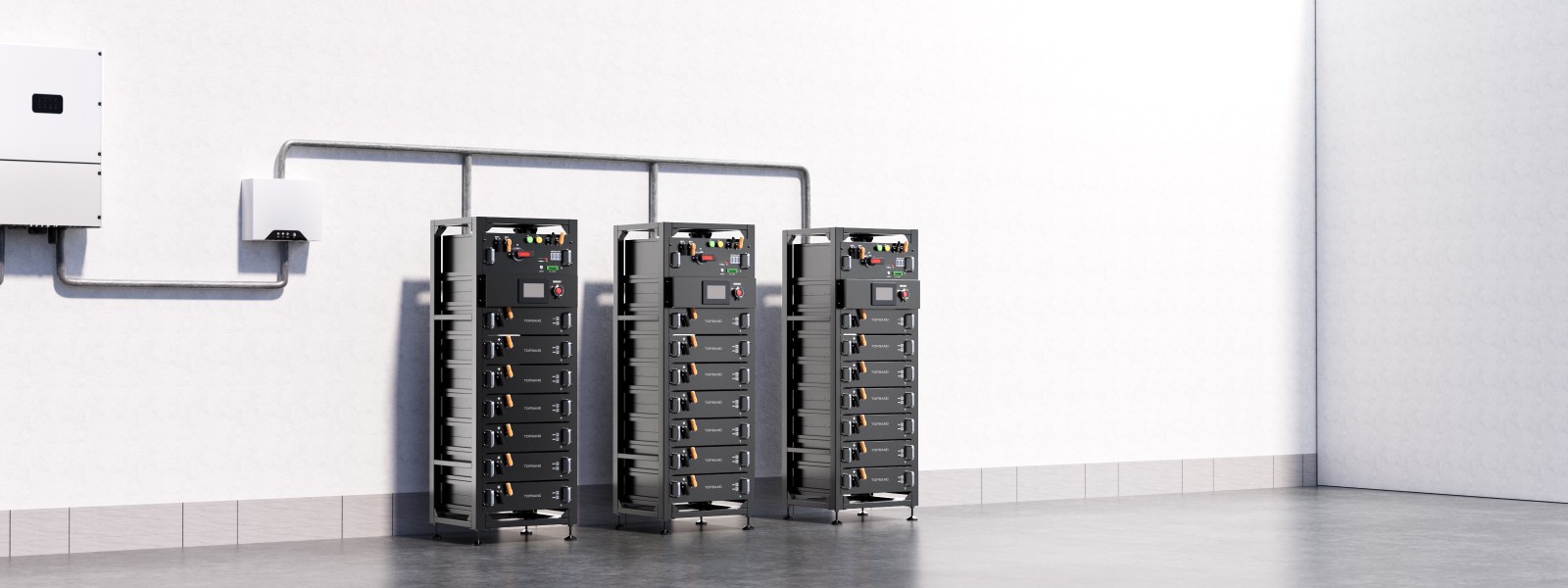

Topband domestic energy storage system gets energy from rooftop solar power generation equipment, household wind turbines, and low-cost power of social power supply systems. This system can be used at peak times, not only meets emergency purposes, but also useful for family electricity costs saving.

Nominal energy15-491kWh
CommunicationRS485 / CAN, WIFI

Explore the Benefits of Lithium Batteries

: Safe&Reliable
Compliant with CE, UN38.3, IEC62619, UL1973

: Flexible & Scalability
Each cluster can stack up to four 5.12kWh modules to form 20.48kWh

: Ultra performance
More than 6000 cycles

: compatibility
Compatible with many hybrid/battery inverter in self- consumption

: Intelligence
Strong pre-charge and balancing capability

: Modular design
stackable installation, easy to install and maintain

TECH & SPECS

Item/Model
153100A
409100A
614100A

Number of battery modules
3(Min)
8
12

Manage battery energy
15.36kWh
40.96kWh
61.44kWh

Nominal voltage
153.6V
409.6V
614.4V

Operation voltage range
139.2~175.2V
371.2~467.2V
556.8V~700.8V

Module nominal voltage
51.2V
51.2V
51.2V

Max. charging current
100A
100A
100A

Max. discharge current
100A
100A
100A

Communication to inverter
RS485 / CAN
RS485 / CAN
RS485 / CAN

Display
LED indicator, LCD display (Optional)
LED indicator, LCD display (Optional)
LED indicator, LCD display (Optional)

Rating
IP20
IP20
IP20

Cycle life
6000 Cycles
6000 Cycles
6000 Cycles

Battery module weight
≈45kg
≈45kg
≈45kg

Module dimension(L*W*H)
442*460*133mm
442*460*133mm
442*460*133mm

Installation
Rack mounted
Rack mounted
Rack mounted
