Focus on LiFePO4 Battery Manufacturing for 18 Years

<
>

LFP Cylindrical cell

Cylindrical lithium iron phosphate batteries can effectively reduce the assembly cost of batteries. The battery adopts the process of welding all tabs on the end face.

,,,

Consult Immediately Specifications

软包 场景1.jpg
LFP Cylindrical cell

Product Design Concept

Cylindrical lithium iron phosphate batteries can effectively reduce the assembly cost of batteries. The battery adopts the process of welding all tabs on the end face, which has the characteristics of small internal resistance, large discharge current, long cycle life, high degree of automation and so on.

Excellent product performance

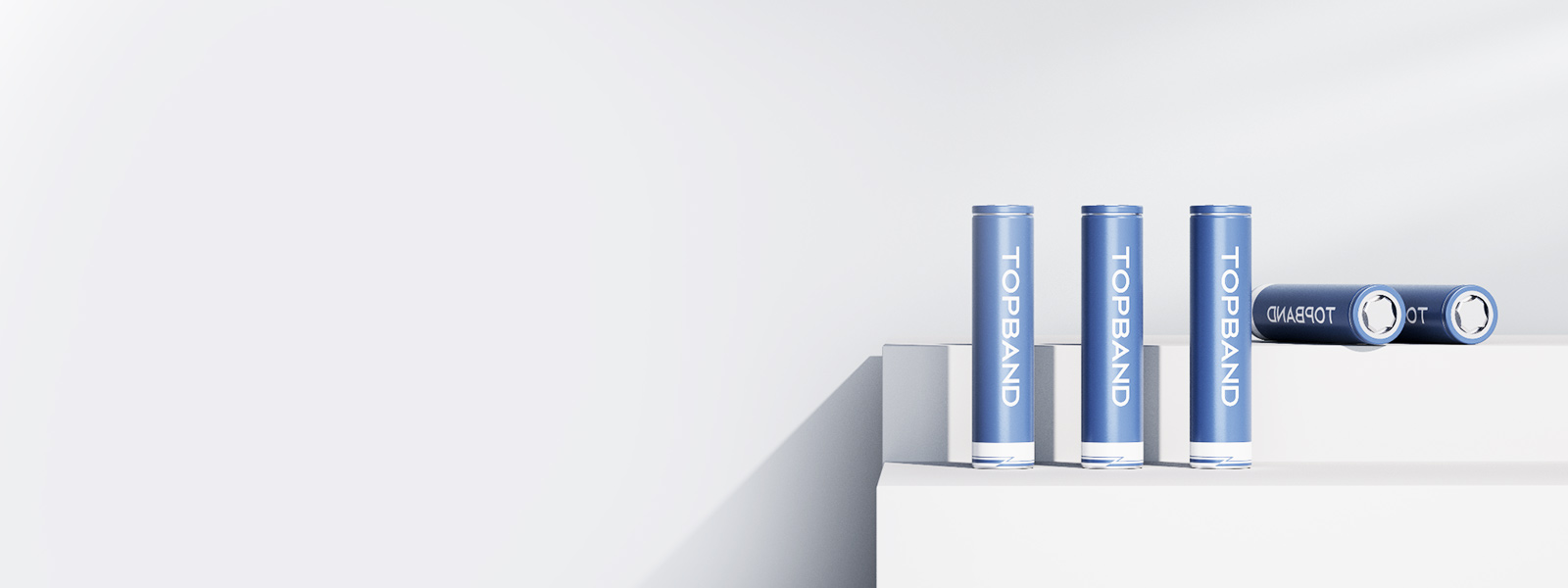

圆柱 场景2.jpg

Super long cycle life

High current discharge

High degree of automation

Small internal resistance

High energy density


Applications

Products have been widely used in two or three wheelers, low-speed cars, forklifts, AGV, solar street lamps, UPS energy storage equipment and other fields.


TECH & SPECS
  • Item/Model
  • TB-32138-HE-12.5Ah-LFP
  • TB-33138-HE-15Ah-LFP
  • TB-40138-HE-20Ah-LFP
  • Nominal voltage
  • 3.2V
  • 3.2V
  • 3.2V
  • Nominal capacity
  • 12.5Ah
  • 15Ah
  • 20Ah
  • Standard charging current
  • 6.25A
  • 7.5A
  • 10A
  • Standard discharge current
  • 6.25A
  • 7.5A
  • 10A
  • Max. continuous discharge current
  • 25A
  • 30A
  • 60A
  • Internal resistance
  • ≤2.3mΩ
  • ≤2.3mΩ
  • ≤1.6mΩ
  • Weight
  • 285g±5g
  • 297±10g
  • 420±10g
  • Cycle life
  • ≥2000cycles(0.5C)
  • ≥2000cycles(0.5C)
  • ≥2000cycles(0.5C)
  • Dimension(L*W*H)
  • 32*138mm
  • 33*138mm
  • 40*138mm
