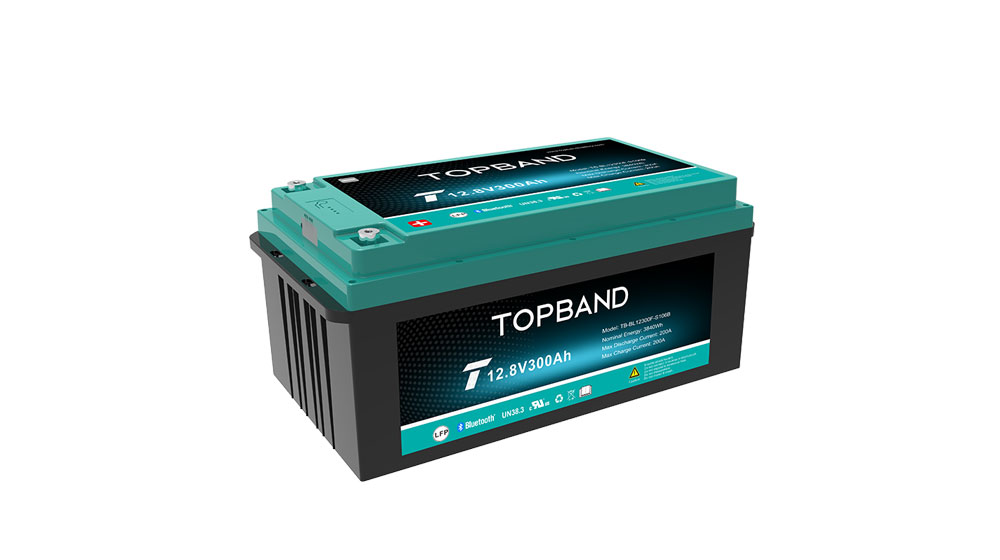

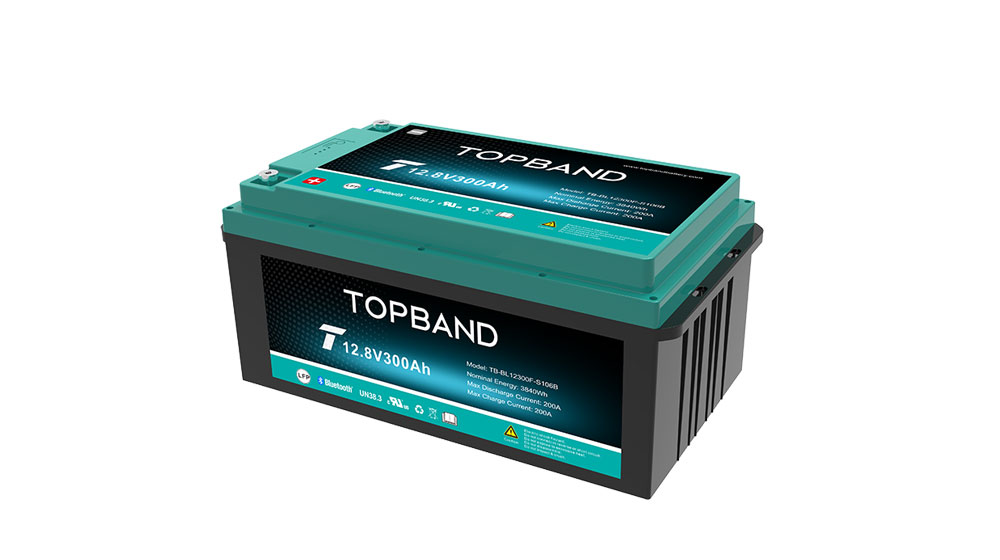

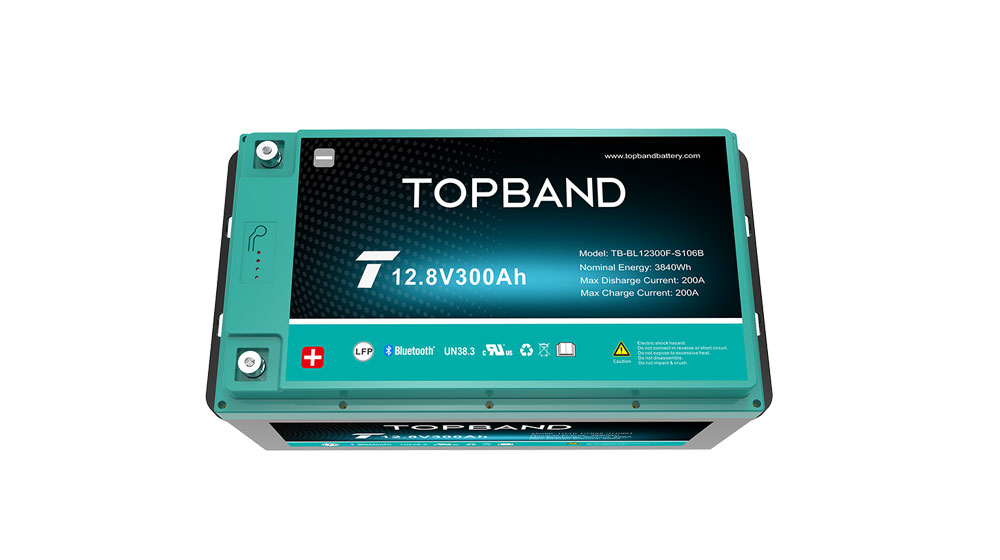

Substitute lead-acid T series 12V300Ah

TOPBAND battery provides advanced Lead acid drop-in battery solution,Widely used in RV, fishing boats, cleaning machines, golf carts, solar energy storage systems and other fields.

Product introduction
Product Design Concept

TOPBAND battery provides advanced Lead acid drop-in battery solution,Widely used in RV, fishing boats, cleaning machines, golf carts, solar energy storage systems and other fields. Battery makes our products available through the best knowledge-based distribution and service organizations for the people and businesses who rely on batteries to work, live, or get away.

support heating function.png
Wide operating temperature range, supports low temperature heating
Compatible with various inverters.png
Equipped with CAN/RS485 interface, can be compatible with various inverters
UL1973/UN38.3/IEC/62619/CE certificated, safety and quality guaranteed
Bluetooth communication fuction, support Bluetooth APP upgrade firmware
6000+Cycles,80% DOD 0.2C/0.2C
Support multiple series or parallel connections

  • Item/Model
  • R-T12100A
  • R-T12200A
  • R-T12300A
  • Nominal voltage
  • 12.8V
  • 12.8V
  • 12.8V
  • Nominal Capacity
  • 100Ah
  • 200Ah
  • 300Ah
  • Rated Energy
  • 1.28kWh
  • 2.56kWh
  • 3.84kWh
  • Internal Resistance(@1kHz AC)
  • ≤20mΩ
  • ≤20mΩ
  • ≤20mΩ
  • Charge Voltage
  • 14.0-14.6V
  • 14.0-14.6V
  • 14.0-14.6V
  • Float Voltage
  • 13.6-13.8V
  • 13.6-13.8V
  • 13.6-13.8V
  • Recommended Charge Current
  • 50A
  • 100A
  • 150A
  • Recommended Discharge Current
  • ≤50A
  • ≤100A
  • ≤150A
  • Max Continuous Discharge Current
  • 100A
  • 200A
  • 200A
  • Cycle Life
  • ≥6000
  • ≥6000
  • ≥6000
  • Dimension(L*W*H)
  • 318x165x225mm
  • 505x172x225mm
  • 521x280x235mm
  • Weight
  • 10kg (22Lb)
  • 27kg (60Lb)
  • 40kg (88Lb)
  • Communication Interface
  • RS485, CAN
  • RS485, CAN
  • RS485, CAN
  • Download
